FLOSS Communication Centralization Plot, Exponentially Weighted

Created: 2009-02-07 18:50:44

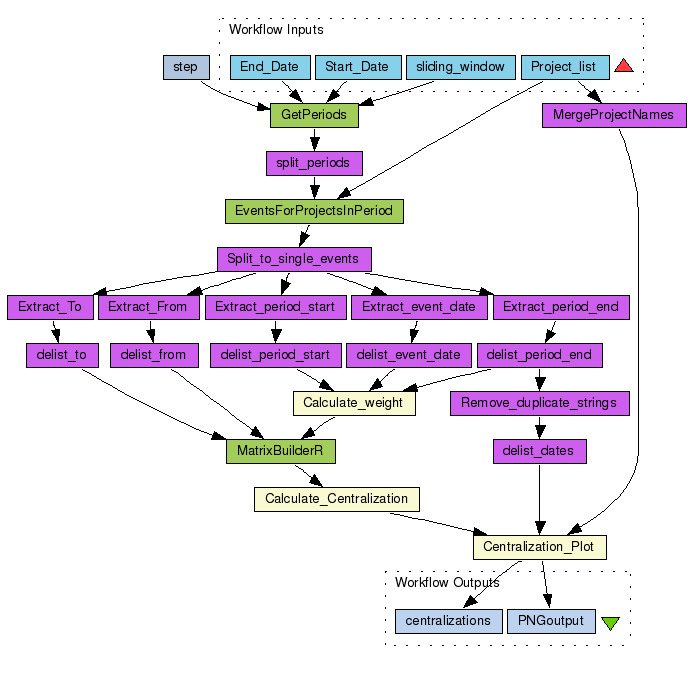

The analysis in this workflow represents the basis of the analysis in our paper, Social dynamics of FLOSS team communication across channels. This workflow uses WSDL components to select periodized data from the FLOSSmole database and generate sociomatrices. The workflow parses the threaded list structure into a communication network based on reply-to relationships. In the analysis process, an edge weighting is applied so that older messages receive less weight using an exponential decay function; this is intended to moderate the effects of using a sliding window of observations for dynamic analysis. The weighted sociomatrices are then dichotomized according to a threshold, and their centralities are calculated using R’s sna package, and plotted in a time series.

The final output demonstrates communication centralization trends over time in a FLOSS project. The analysis workflow allows users to set parameter values for the size of the sliding window, the date ranges covered, and the communication venues analyzed. Data for the analysis in the paper examined dynamics in different communication channels; the data sets included up to 90 periods (with a 90-day sliding window) and 10K’s of email messages or forum posts. Date periods are currently only in months, and exception handling for empty periods is implemented both in the WSDL components and the RShell scripts. Future development effort could focus on extending periodization options and optimizing performance.

Information Preview

Information Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/144/download?version=3
[ More InfoExpand ]


Information Workflow Components

Inputs (4)
Processors (22)
Beanshells (0)
Outputs (2)
Links (33)
Coordinations (0)

Information Workflow Type

Taverna 1

Information Uploader

Information License

All versions of this Workflow are licensed under:

Information Version 3 (of 4)

View version:

Information Credits (3)

(People/Groups)

Information Attributions (0)

(Workflows/Files)

None

Information Tags (9)

Log in to add Tags

Information Shared with Groups (1)

Information Featured In Packs (2)

Log in to add to one of your Packs

Information Attributed By (1)

(Workflows/Files)

Information Favourited By (0)

No one

Information Statistics



Citations (0)

None


Version History

In chronological order:



Reviews Reviews (0)

No reviews yet

Be the first to review!



Comments Comments (2)

Log in to make a comment

  • Friday 15 February 2008 20:02:00 (UTC)

    We have made this workflow available to use with some FLOSSmole data. There is a list of the project names in the Project_list input metadata description that contains the data that are available for use as of 2/15/2008.

    The project names are:

    fire-tracker-feature-requests
    fire-tracker-translations
    fire-talk
    fire-core
    fire-development
    gaim-cabal
    gaim-devel
    gaim-forum-users-helping-users
    gaim-tracker-plugins
    gaim-tracker-patches
    gaim-tracker-smileys
    gaim-tracker-rej-patches

  • Friday 15 February 2008 20:22:44 (UTC)

    Start and end dates are also required for using this workflow.  The "active" project date ranges that we have chosen for the projects are:

    Fire, 2001-08-16 (registry) through 2006-03-15 (one month following final release 1.5.6)

    Gaim, 1999-11-13 (registry) through 2007-04-24 (when the project changed name to Pidgin and its lists moved)

    Note that not all date ranges contain data for all venues; some were not active as early as others and some were ad-hoc communication venues (i.e. gaim-cabal).
