Syntetic population mapper

Created: 2010-06-23 13:12:41 Last updated: 2010-12-09 10:43:38

Download Workflow

This workflow takes a csv file with census data, runs the PRM over it and the resulting csv is visualsed using the MapTube software.

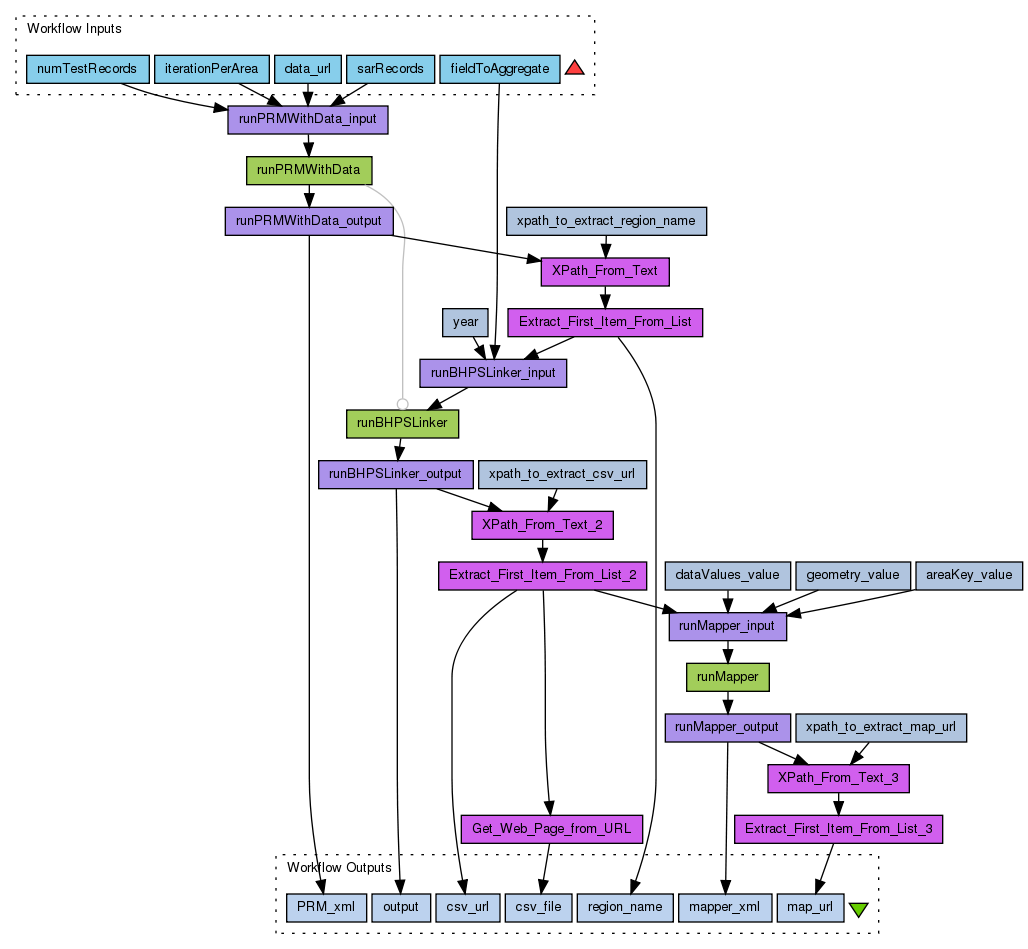

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1353/download?version=1
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Dependencies (0)

Inputs (5)

Name	Description
data_url	PRM (Population Reconstruction Model) - takes a csv file with census data and generates another csv file that contains URL to the census data PRM (Population Reconstruction Model) - takes a csv file with census data and generates another csv file that contains PRM
iterationPerArea	Number of iterations the service will try to make realistic population in each area.
numTestRecords	The number of unique individuals to include in the final population.
sarRecords	The number of unique individuals to include in the final population.
fieldToAggregate	Field from csv file to aggregate

Processors (23)

Name	Type	Description
runPRMWithData	wsdl	Wsdl http://geo-s12.leeds.ac.uk:8080/NeissModel_WS/ModelService?wsdl Wsdl Operation runPRMWithData
runPRMWithData_input	xmlsplitter
runBHPSLinker	wsdl	Wsdl http://geo-s12.leeds.ac.uk:8080/NeissModel_WS/ModelService?wsdl Wsdl Operation runBHPSLinker
runBHPSLinker_input	xmlsplitter
runPRMWithData_output	xmlsplitter
year	stringconstant	Value 2001
runBHPSLinker_output	xmlsplitter
XPath_From_Text	localworker	Script import org.dom4j.Document; import org.dom4j.Node; import org.dom4j.io.SAXReader; SAXReader reader = new SAXReader(false); reader.setIncludeInternalDTDDeclarations(false); reader.setIncludeExternalDTDDeclarations(false); Document document = reader.read(new StringReader(xmltext)); List nodelist = document.selectNodes(xpath); // Process the elements in the nodelist ArrayList outputList = new ArrayList(); ArrayList outputXmlList = new ArrayList(); String val = null; String xmlVal = null; for (Iterator iter = nodelist.iterator(); iter.hasNext();) { Node element = (Node) iter.next(); xmlVal = element.asXML(); val = element.getStringValue(); if (val != null && !val.equals("")) { outputList.add(val); outputXmlList.add(xmlVal); } } List nodelist=outputList; List nodelistAsXML=outputXmlList;
xpath_to_extract_region_name	stringconstant	Value /neiss_xml/results_data/data_element/result_url
xpath_to_extract_csv_url	stringconstant	Value /neiss_xml/results_data/data_element/result_url
XPath_From_Text_2	localworker	Script import org.dom4j.Document; import org.dom4j.Node; import org.dom4j.io.SAXReader; SAXReader reader = new SAXReader(false); reader.setIncludeInternalDTDDeclarations(false); reader.setIncludeExternalDTDDeclarations(false); Document document = reader.read(new StringReader(xmltext)); List nodelist = document.selectNodes(xpath); // Process the elements in the nodelist ArrayList outputList = new ArrayList(); ArrayList outputXmlList = new ArrayList(); String val = null; String xmlVal = null; for (Iterator iter = nodelist.iterator(); iter.hasNext();) { Node element = (Node) iter.next(); xmlVal = element.asXML(); val = element.getStringValue(); if (val != null && !val.equals("")) { outputList.add(val); outputXmlList.add(xmlVal); } } List nodelist=outputList; List nodelistAsXML=outputXmlList;
Get_Web_Page_from_URL	localworker	Script URL inputURL = null; if (base != void) { inputURL = new URL(new URL(base), url); } else { inputURL = new URL(url); } URLConnection con = inputURL.openConnection(); InputStream in = con.getInputStream(); InputStreamReader isr = new InputStreamReader(in); Reader inReader = new BufferedReader(isr); StringBuffer buf = new StringBuffer(); int ch; while ((ch = inReader.read()) > -1) { buf.append((char)ch); } inReader.close(); contents = buf.toString(); //String NEWLINE = System.getProperty("line.separator"); // //URL inputURL = null; //if (base != void) { // inputURL = new URL(new URL(base), url); //} else { // inputURL = new URL(url); //} //StringBuffer result = new StringBuffer(); //BufferedReader reader = new BufferedReader(new InputStreamReader(inputURL.openStream())); //String line = null; //while ((line = reader.readLine()) != null) { // result.append(line); // result.append(NEWLINE); //} // //contents = result.toString();
Extract_First_Item_From_List	localworker	Script if (!stringList.isEmpty()){ firstItem = stringList.get(0); } else{ firstItem = null; }
Extract_First_Item_From_List_2	localworker	Script if (!stringList.isEmpty()){ firstItem = stringList.get(0); } else{ firstItem = null; }
runMapper	wsdl	Wsdl http://geo-s12.leeds.ac.uk:8080/NeissModel_WS/ModelService?wsdl Wsdl Operation runMapper
runMapper_input	xmlsplitter
runMapper_output	xmlsplitter
geometry_value	stringconstant	Value OA
areaKey_value	stringconstant	Value OA_Code
dataValues_value	stringconstant	Value Gender_1
XPath_From_Text_3	localworker	Script import org.dom4j.Document; import org.dom4j.Node; import org.dom4j.io.SAXReader; SAXReader reader = new SAXReader(false); reader.setIncludeInternalDTDDeclarations(false); reader.setIncludeExternalDTDDeclarations(false); Document document = reader.read(new StringReader(xmltext)); List nodelist = document.selectNodes(xpath); // Process the elements in the nodelist ArrayList outputList = new ArrayList(); ArrayList outputXmlList = new ArrayList(); String val = null; String xmlVal = null; for (Iterator iter = nodelist.iterator(); iter.hasNext();) { Node element = (Node) iter.next(); xmlVal = element.asXML(); val = element.getStringValue(); if (val != null && !val.equals("")) { outputList.add(val); outputXmlList.add(xmlVal); } } List nodelist=outputList; List nodelistAsXML=outputXmlList;
xpath_to_extract_map_url	stringconstant	Value /neiss_xml/results_data/data_element/result_url
