Uniprot Protein Visualization

Created: 2010-05-01 20:29:37 Last updated: 2010-05-01 20:40:10

Download Workflow

Jmol 3D visualization of a protein structure.

Preview

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1239/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (2)

Descriptions (1)

Dependencies (0)

Inputs (0)

Processors (6)

Name	Type	Description
UniProt_Record_value	stringconstant	Value P68871
fetch_jmol_file	workflow
limit	beanshell	Script output = new ArrayList();int limitInt = Integer.parseInt(limit);for (int i = 0; i < input.size() && limitInt > 0; i++) { List list = (List) input.get(i); for (int j = 0; j < list.size() && limitInt > 0; j++) { output.add(list.get(j)); limitInt--; }}
limit_value	stringconstant	Value 5
UniProt-to-PDB	sadi	Endpoint http://biordf.net/sparql
renderProteinStructure	sadi	Endpoint http://biordf.net/sparql

Beanshells (2)

Name	Description	Inputs	Outputs
limit		limit input	output
selectLastUrl		in	out

Outputs (1)

Name	Description
hasJmol3DStructureVisualization

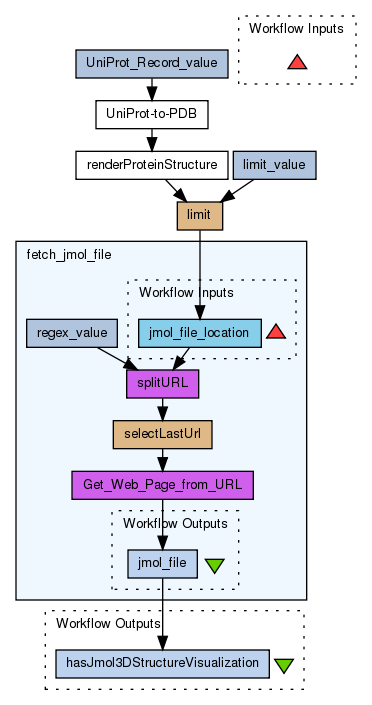

Datalinks (6)

Source	Sink
limit:output	fetch_jmol_file:jmol_file_location
limit_value:value	limit:limit
renderProteinStructure:hasJmol3DStructureVisualization (Thing)	limit:input
UniProt_Record_value:value	UniProt-to-PDB:UniProt_Record
UniProt-to-PDB:has3DStructure (PDB_Record)	renderProteinStructure:PDB_Record
fetch_jmol_file:jmol_file	hasJmol3DStructureVisualization

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

David Withers

Information License

All versions of this Workflow are licensed under:

Information Version 1 (of 1)

Information Credits (0)

(People/Groups)

None

Information Attributions (0)

(Workflows/Files)

None

Information Tags (3)

Uploader tags

pdb
|
sadi
|
uniprot

Log in to add Tags

Information Shared with Groups (1)

SADI

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (1)

Mark Wilkinson

Information Statistics

2352 viewings

1596 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Uniprot Protein Visualization

Created by David Withers on Saturday 01 May 2010 20:29:37 (UTC)

Last edited by David Withers on Saturday 01 May 2010 20:40:11 (UTC)

Reviews (2)

Write your own Review

Kasikrit Damkliang

Title: Service unavailable

Rating: not yet rated

Created: 2015-07-29 09:36:53 | Updated: 2015-07-29 09:36:53

I just found that UniProt-to-PDB and renderProteinStructure is not working.How can I fix it or use other services instead?Best Regards,Kasikrit

[ more ]

View

Mark Wilkinson

Title: Ideas for extension of the workflow

Rating: 5 out of 5

Created: 2011-02-17 19:49:14 | Updated: 2011-02-17 19:50:28

works exactly as indicated. Input is the UniProt ID of any protein of interest. To extend this workflow futher, you can add the SADI KEGG Pathway -> KEGG Genes service, then KEGG Genes -> UniProt IDs service. This will then give you the jMol visualization of all of the proteins in a given pathway. Very very cool :-)

[ more ]

View
