PDB2KEGG step 1done during BH2010
Created: 2010-02-13 09:37:39
No description has been set
Preview
Run
Run this Workflow in the Taverna Workbench...

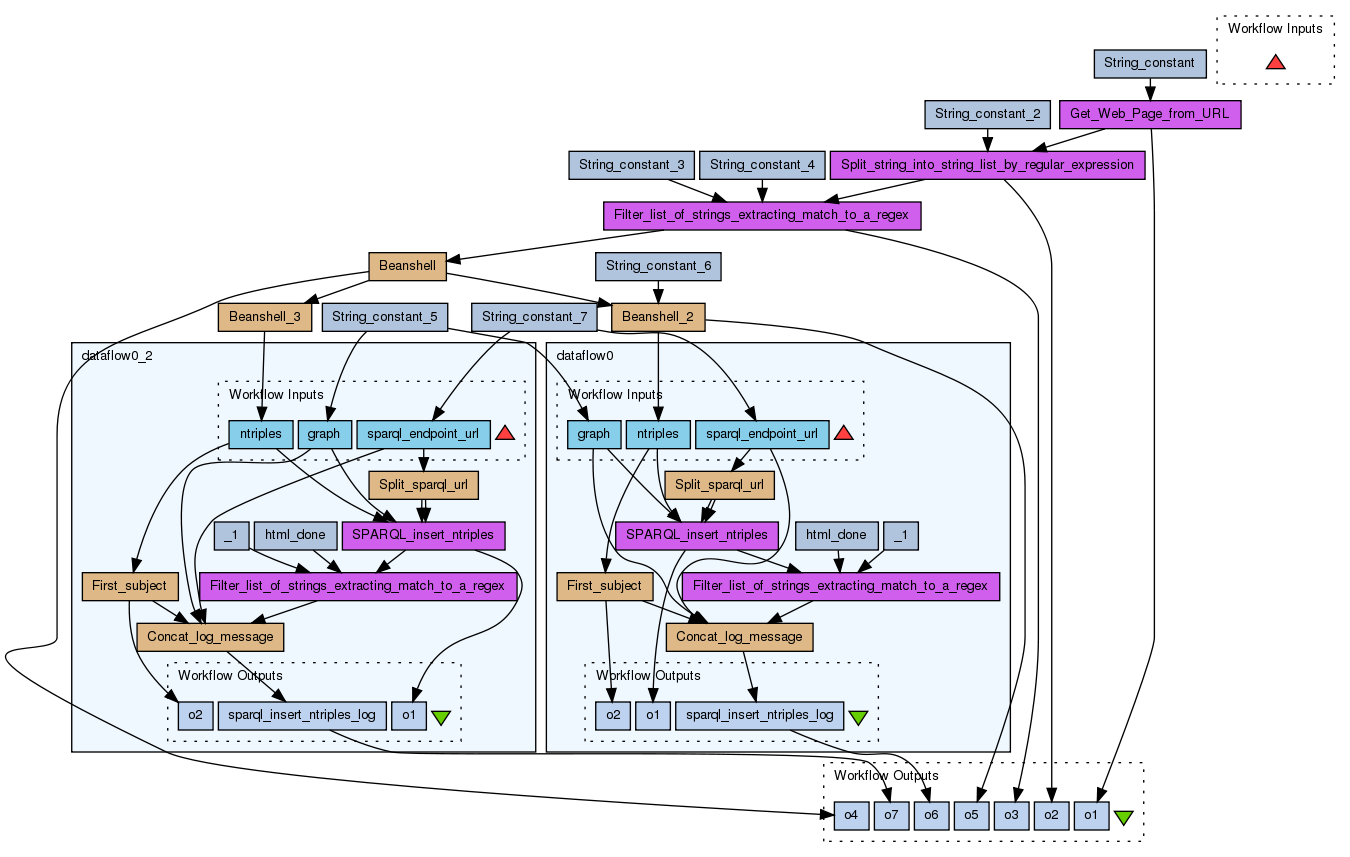

Workflow Components
Authors (1)
Francois.Belleau@yahoo.ca
mitsuteru.nakao@gmail.com |
Titles (1)
PDB2KEGG step 1done during BH2010 |
Descriptions (0)
Dependencies (0)
Processors (15)
Name |
Type |
Description |
String_constant |
stringconstant |
Valuehttp://192.168.11.61:8892/sparql?default-graph-uri=&should-sponge=&query=select+%3Fpdb%0D%0Awhere+%7B%0D%0A+++%3Fpdb+%3Chttp%3A%2F%2Ftogordf.dbcls.jp%2Fkegg%3Agene%3E+%3Fkegg+.+%0D%0A%7D%0D%0Alimit+10&format=text%2Fhtml&debug=on&timeout= |
Get_Web_Page_from_URL |
localworker |
ScriptURL inputURL = null;
if (base != void) {
inputURL = new URL(new URL(base), url);
}
else {
inputURL = new URL(url);
}
URLConnection con = inputURL.openConnection();
InputStream in = con.getInputStream();
InputStreamReader isr = new InputStreamReader(in);
Reader inReader = new BufferedReader(isr);
StringBuffer buf = new StringBuffer();
int ch;
while ((ch = inReader.read()) > -1) {
buf.append((char)ch);
}
inReader.close();
contents = buf.toString();
//String NEWLINE = System.getProperty("line.separator");
//
//URL inputURL = null;
//if (base != void) {
// inputURL = new URL(new URL(base), url);
//} else {
// inputURL = new URL(url);
//}
//StringBuffer result = new StringBuffer();
//BufferedReader reader = new BufferedReader(new InputStreamReader(inputURL.openStream()));
//String line = null;
//while ((line = reader.readLine()) != null) {
// result.append(line);
// result.append(NEWLINE);
//}
//
//contents = result.toString();
|
Split_string_into_string_list_by_regular_expression |
localworker |
ScriptList split = new ArrayList();
if (!string.equals("")) {
String regexString = ",";
if (regex != void) {
regexString = regex;
}
String[] result = string.split(regexString);
for (int i = 0; i < result.length; i++) {
split.add(result[i]);
}
}
|
String_constant_2 |
stringconstant |
Value\n |
Filter_list_of_strings_extracting_match_to_a_regex |
localworker |
Scriptimport java.util.regex.*;
filteredlist = new ArrayList();
Pattern thePat = Pattern.compile(regex);
int theGroup = Integer.parseInt(group);
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
Matcher matcher = thePat.matcher(item);
if (matcher.find()) {
filteredlist.add(matcher.group(theGroup));
}
}
|
String_constant_3 |
stringconstant |
Value1 |
String_constant_4 |
stringconstant |
Value.* | http(.*) |
Beanshell |
beanshell |
Script//out0 = "http" + in0.toLowerCase();
out0 = "http" + in0; |
String_constant_6 |
stringconstant |
Valuehttp://192.168.11.61:8892/sparql |
Beanshell_2 |
beanshell |
Scriptimport com.hp.hpl.jena.rdf.model.*;
Model model = ModelFactory.createDefaultModel();
//CONSTRUCT {?s ?p ?o . } WHERE {?s ?p ?o . FILTER (?s = )}
model.read(sparql_endpoint + "?default-graph-uri=&query=CONSTRUCT+{%3Fs+%3Fp+%3Fo+.+}+WHERE+{%3Fs+%3Fp+%3Fo+.+FILTER+(%3Fs+%3D+%3C" + bmuri + "%3E)}&format=application%2Frdf%2Bxml&debug=on&timeout=");
StringWriter writer = new StringWriter ( ) ;
model.write( writer, "N-TRIPLE");
ntriples = writer.toString ( ) ; |
dataflow0 |
workflow |
|
String_constant_5 |
stringconstant |
Valuehttp://pdb2kegg |
String_constant_7 |
stringconstant |
Valuehttp://192.168.11.61:8893/sparql |
dataflow0_2 |
workflow |
|
Beanshell_3 |
beanshell |
Scriptntriples = "<"+uri+"> .";
ntriples = ntriples + "\n<"+uri+"> \"type_structure\" .";
ntriples = ntriples + "\n<"+uri+"> <"+uri.replace("http://pdbj.org/","http://bio2rdf.org/pdb:")+"> .";
|
Beanshells (6)
Name |
Description |
Inputs |
Outputs |
Beanshell |
|
in0
|
out0
|
Beanshell_2 |
|
bmuri
sparql_endpoint
|
ntriples
|
Beanshell_3 |
|
uri
|
ntriples
|
Concat_log_message |
|
msg
graph
sparql_url
subject
|
log
|
Split_sparql_url |
|
sparql_url
|
host
port
|
First_subject |
|
ntriples
|
subject
|
Outputs (7)
Name |
Description |
o1 |
|
o2 |
|
o3 |
|
o4 |
|
o5 |
|
o6 |
|
o7 |
|
Datalinks (23)
Source |
Sink |
String_constant:value |
Get_Web_Page_from_URL:url |
Get_Web_Page_from_URL:contents |
Split_string_into_string_list_by_regular_expression:string |
String_constant_2:value |
Split_string_into_string_list_by_regular_expression:regex |
Split_string_into_string_list_by_regular_expression:split |
Filter_list_of_strings_extracting_match_to_a_regex:stringlist |
String_constant_4:value |
Filter_list_of_strings_extracting_match_to_a_regex:regex |
String_constant_3:value |
Filter_list_of_strings_extracting_match_to_a_regex:group |
Filter_list_of_strings_extracting_match_to_a_regex:filteredlist |
Beanshell:in0 |
Beanshell:out0 |
Beanshell_2:bmuri |
String_constant_6:value |
Beanshell_2:sparql_endpoint |
Beanshell_2:ntriples |
dataflow0:ntriples |
String_constant_5:value |
dataflow0:graph |
String_constant_7:value |
dataflow0:sparql_endpoint_url |
String_constant_5:value |
dataflow0_2:graph |
String_constant_7:value |
dataflow0_2:sparql_endpoint_url |
Beanshell_3:ntriples |
dataflow0_2:ntriples |
Beanshell:out0 |
Beanshell_3:uri |
Get_Web_Page_from_URL:contents |
o1 |
Split_string_into_string_list_by_regular_expression:split |
o2 |
Filter_list_of_strings_extracting_match_to_a_regex:filteredlist |
o3 |
Beanshell:out0 |
o4 |
Beanshell_2:ntriples |
o5 |
dataflow0:sparql_insert_ntriples_log |
o6 |
dataflow0_2:sparql_insert_ntriples_log |
o7 |
